溢流环发射换能器
溢流环发射换能器

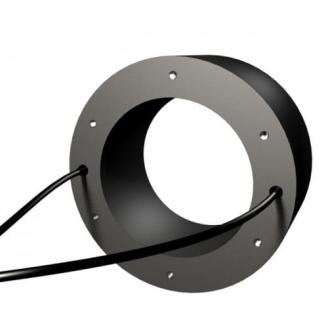

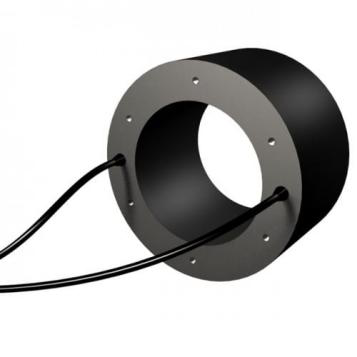

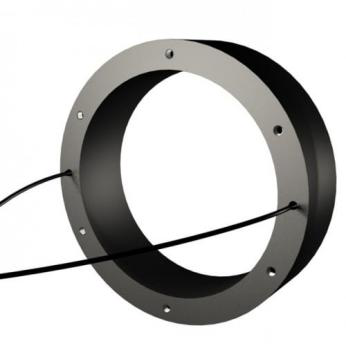

FREE FLOODED RING PROJECTORS
特征：
1.1.8千赫溢流环
2.宽带
3.高功率
4.全向波束
5.无限深度
6.长距离传输
表1：T160-406系列
FREE FLOODED RING PROJECTORS
特征：
1.1.8千赫溢流环
2.宽带
3.高功率
4.全向波束
5.无限深度
6.长距离传输
表1：T160-406系列
 |
 |
 |
||||||||||||
技术规格
|
T160 |
T161 |
T170 |
T406 |
||||||||||
|
共振频率 Resonant Frequency |
2.5kHz | 1.8kHz | 4kHz | 10kHz | ||||||||||
|
波段操作 Operating Band |
2kHz to 8kHz | 1kHz to 4kHz | 3kHz to 9.5kHz | 8kHz to 20kHz | ||||||||||
|
发射响应 Transmit Sensitivity |
135dB re 1µPa/V @ 1m | 135dB re 1µPa/V @ 1m | 135dB re 1µPa/V @ 1m | 125dB re 1µPa/V @ 1m | ||||||||||
|
接收灵敏度 Receive Sensitivity |
-170dB re 1V/µPa | -165dB re 1V/µPa | -175dB re 1V/µPa | -167dB re 1V/µPa | ||||||||||
|
水平全向波束 Horizontal Beam Pattern Omni |
+/- 2dB up to 6kHz | +/- 2dB up to 4kHz | +/- 2dB up to 9kHz | +/- 2dB up to 18kHz | ||||||||||
|
垂直环形波束 Vertical Beam Pattern Toroidal |
||||||||||||||
|
输入功率 Input Power |
2000 Watts @ 10% Duty Cycle | 2000 Watts @ 10% Duty Cycle | 1500 Watts @ 10% Duty Cycle | |||||||||||
|
工作深度 Operating Depth |
无限 Unlimited |
|||||||||||||
